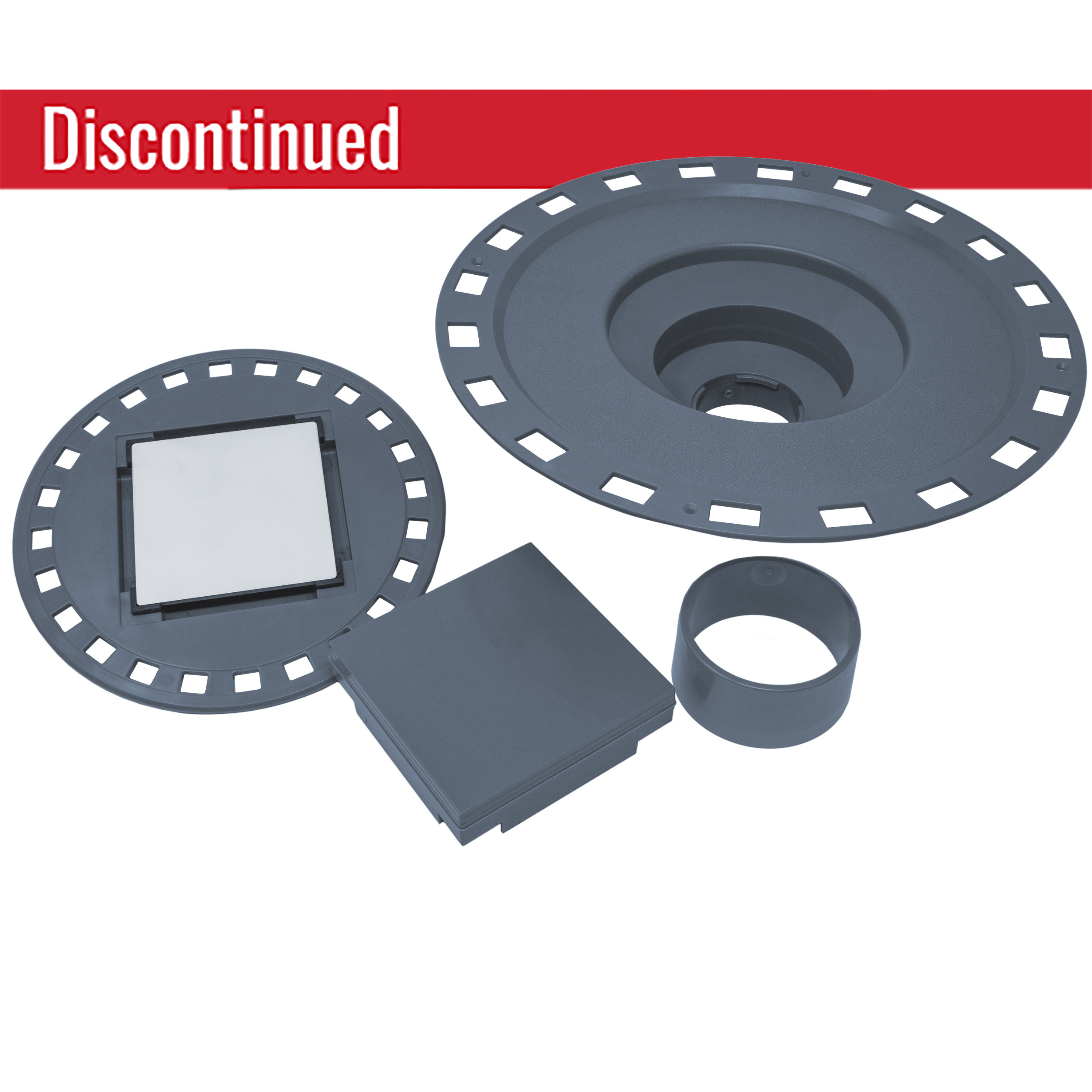

HYDRO BAN Bonding Flange Drain - Discontinued
产品 #
Low-profile, bonding flange and tile-in drains compatible with our pre-formed pans or mortar beds.
产品概述
HYDRO BAN Bonding Flange and Tile-in Drains feature a low-profile design that accommodates a wide range of tile sizes and thicknesses. Compatible with LATICRETE pre-formed shower pans and traditional mortar bed installations, they support multiple waterproofing methods for faster, more versatile installs. Constructed in PVC or ABS with 304L stainless steel components, it delivers long-lasting performance. Available in convenient 10-pack kits.
Designed for bonded installations with HYDRO BAN waterproofing membrane, they allow for the installation in a shower, eliminating the pre-slope and primary shower pan liner according to TCNA Method B422.
Need a custom size for your next shower project?
Discover our extensive selection of customizable finishes, sizes, and drain configurations tailored to suit any installation. For added convenience, we also offer pre-waterproofed options. Visit the HYDRO BAN Rapid Custom Shower System page to explore more and find the ideal solution for your project.
信息和指南
-
产品规格书
-
保证
-
营销信息
-
安全数据表
-
批准和认证
-
安装信息
特点和优势
Bonding Flange:
- Low profile design - More accepting to a wider variety of tile sizes and thicknesses
- Works with our pre-formed shower pan - Quicker overall installation
- Compatible with mortar bed installations - Allows for a variety of installation and waterproofing methods
- Threaded height adjustment capability - Allows for easier adjustment of grate height
- Adjusting ring slope guidance - Integrated markings to waste outlet
- IAPMO approved & made from heavy duty PVC or ABS - Meets common building codes/certifications
- Precision hand crafted using heavy duty 304L stainless steel - Extremely strong, provides for long lasting performance that is scratch, wear and rust resistant
- Versatile compatibility with waste outlets from 2-4” - Attaches to 2" (50 mm), 3" (76 mm) and 4" (102 mm) waste lines
- Available in 10 pack kit configurations - Easy-to-order, easy-to-store and optimized packaging, cost savings
- Low profile design - More accepting to a wider variety of tile sizes and thicknesses
- Works with our pre-formed shower pan - Quicker overall installation
- Compatible with mortar bed installations - Allows for a variety of installation and waterproofing methods
- Stainless steel bonding plate - Ease of final tile install, durable
- Integrated rubber feet - Insures a secure fit and minimizes movement and noise
- Installation barrier included - Keeps waste out during the installation process
- Comprised of durable, non-corrosive materials - Minimizes post-installation risk and maintenance
产品说明书
详
| 专利号 | |
|---|---|
| 可用颜色 | Natural Aluminum |
| 系统组分 | LATICRETE® |
| 在以下国家/地区有售 | Canada, United States |
| Substrates | Cement Backer Board, Cement Mortar Bed, Concrete, Exterior Glue Plywood |
| 包装尺寸 |

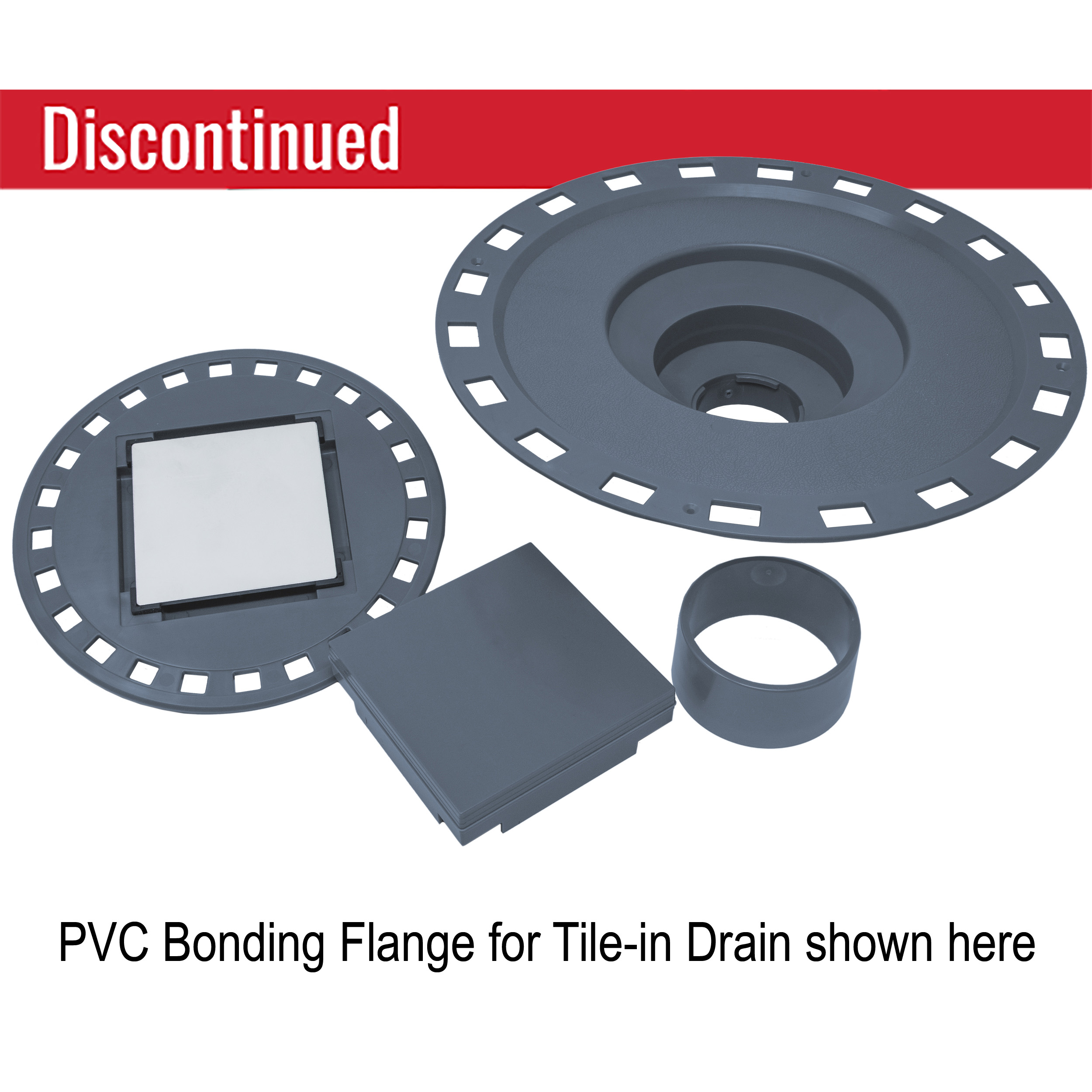

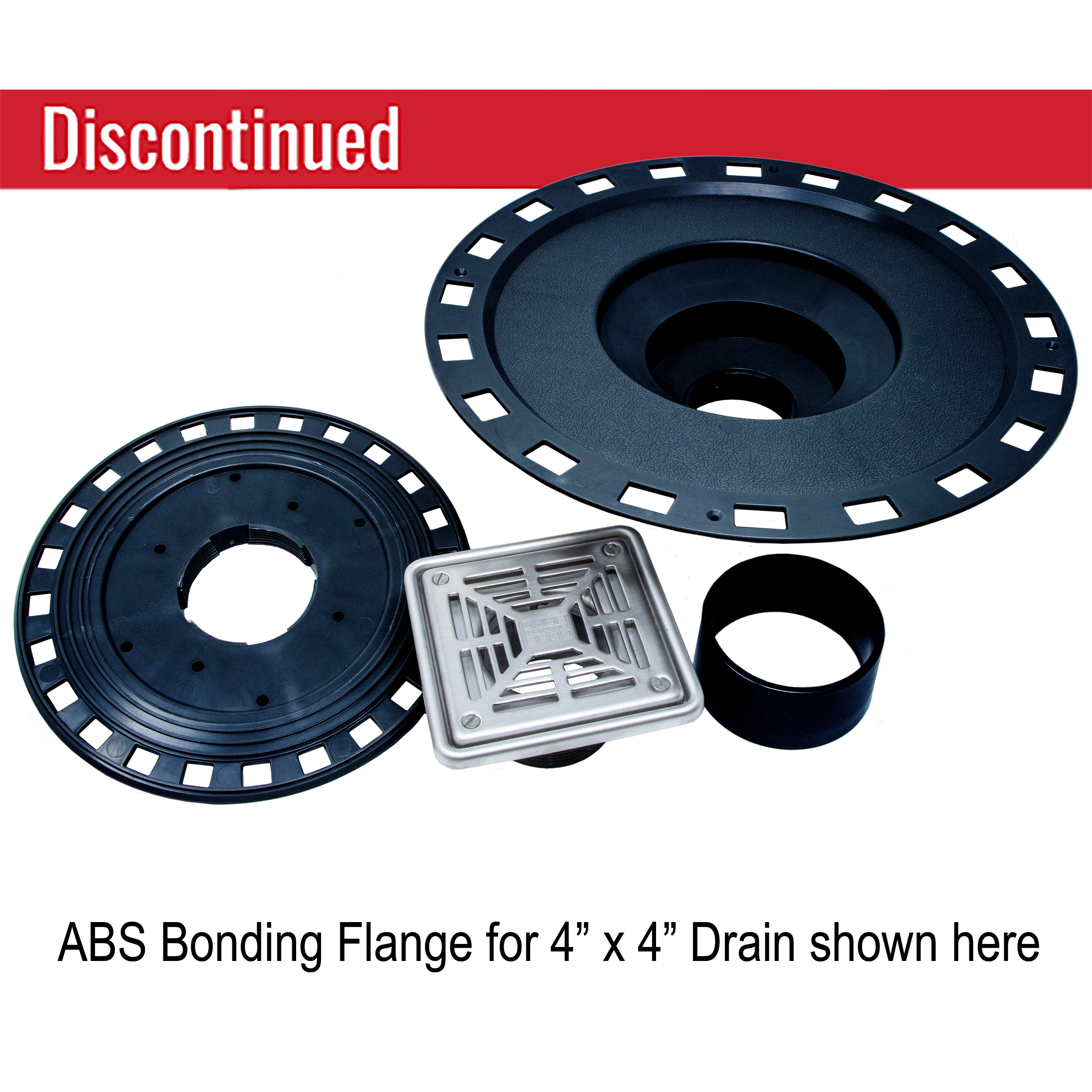

The HYDRO BAN Bonding Flange Drain is a three-piece drain flange, adjusting ring and a 4" x 4" (102 x 102 mm) grate assembly in brushed, polished, matte black or oil rubbed bronze stainless steel. The HYDRO BAN Bonding Flange Tile Drain is a four-piece drain flange, adjusting ring and a 4" x 4" (102 x 102 mm)) grate assembly that can be tiled to match the shower floor. All Bonding Flange Drains are available with either PVC or ABS Bonding Flange. When ordering a HYDRO BAN Bonding Flange Drain check with local code official to determine whether a PVC or ABS HYDRO BAN Bonding Flange Drain is required. Most areas in the United States will require a PVC drain connection except California and some surrounding states. Check local plumbing code for drain composition requirements. |
