HYDRO BAN® Preformed Curb
产品概述
HYDRO BAN Preformed Curbs are made from high-density expanded polystyrene with a liquid waterproof membrane coating already applied to it, making them easy-to-use and ready-to-tile. This lightweight curb is available in rabbeted edge and flat-edge options in various sizes. The rabbeted edge curb is designed for use with the classic one-piece Pre-Sloped Pan whereas the flat-edge curb is designed for use with the Modular Pre-Sloped Pan. Both designs give installers maximum flexibility.
Required Materials: Utility knife or fine tooth saw, latex fortified large, heavy tile mortar (eg. 4-XLT), 1/2" x 1/2" (12 x 12 mm) square notch trowel and HYDRO BAN Adhesive & Sealant.
Need a custom size for your next shower project?
Discover our extensive selection of customizable finishes, sizes, and drain configurations tailored to suit any installation. For added convenience, we also offer pre-waterproofed options. Visit the HYDRO BAN Rapid Custom Shower System page to explore more and find the ideal solution for your project.
信息和指南
-
产品规格书
-
保证
-
营销信息
-
安全数据表
-
批准和认证
-
安装信息
特点和优势
- Ready to tile preformed curb eliminates need for traditional curb installations
- Lightweight and durable. Easy to transport and handle during installation
- Factory installed, code approved waterproofing meets ANSI A118.10 requirements
- Can quickly and easily be modified to size on site
- Works in conjunction with tile and stone installation materials
产品说明书
详
| 专利号 | |
|---|---|
| 可用颜色 | |
| 系统组分 | LATICRETE® |
| 在以下国家/地区有售 | Canada, United States |
| Substrates | Cement Backer Board, Concrete, Exterior Glue Plywood (Interior Only), Masonry Surfaces, Oriented Strand Board (OSB), Oriented Strand Board (OSB), Tile or Stone |
| 包装尺寸 |

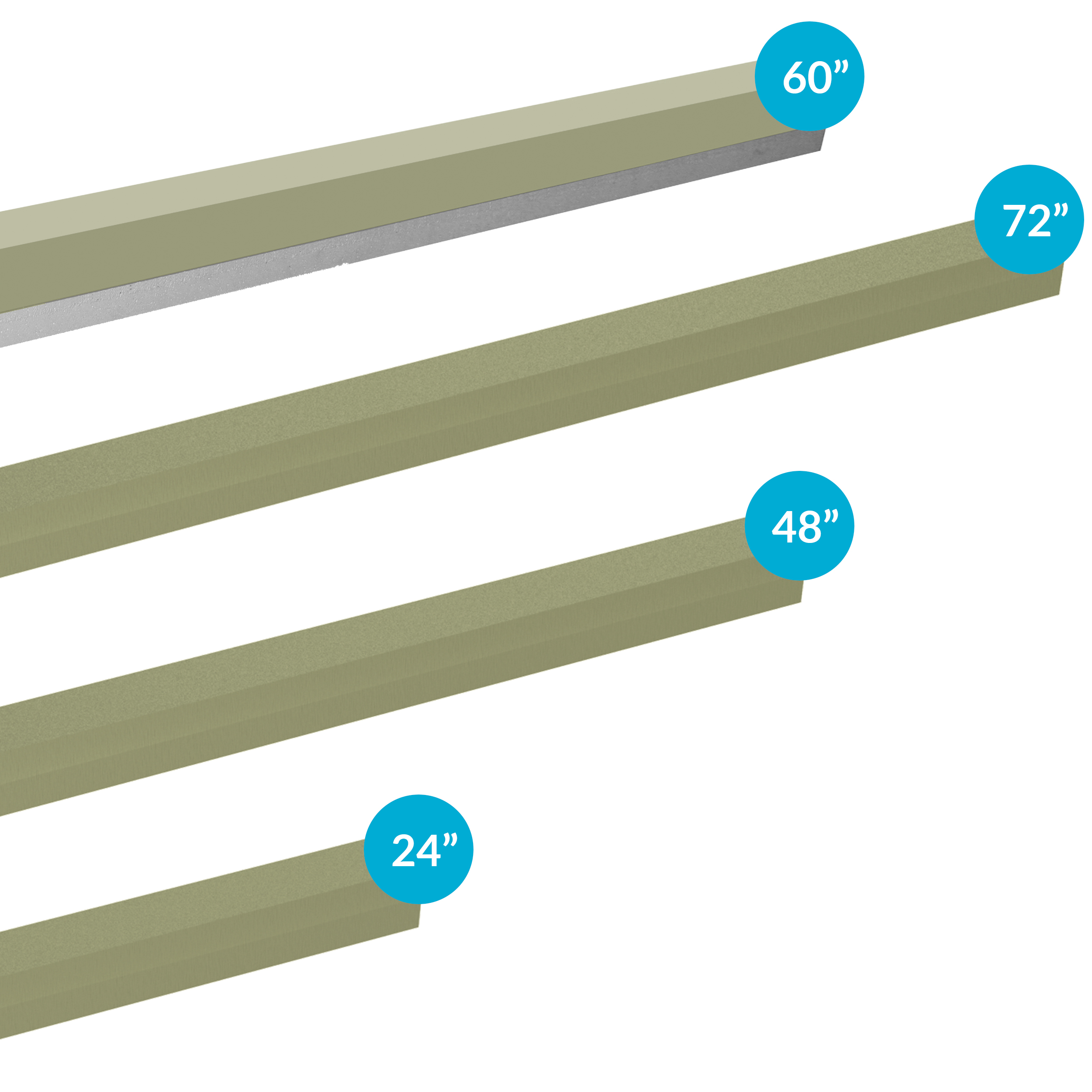

2' (61 cm) long, 4.5” (11.4 cm) high, 3.75" (9.5 cm) wide. 4' (122 cm) long, 3 ¾ " (10 cm) high, 3.5" (9 cm) wide. 5' (152 cm) long, 3 ¾ " (10 cm) high, 3.5" (9 cm) wide. 6' (183 cm) long, 3 ¾ " (10 cm) high, 3.5" (9 cm) wide. Packaged one to a carton. |
