Product #

A waterproof sheet membrane that is installed using a substrate appropriate LATICRETE® thin-set.


Product Overview

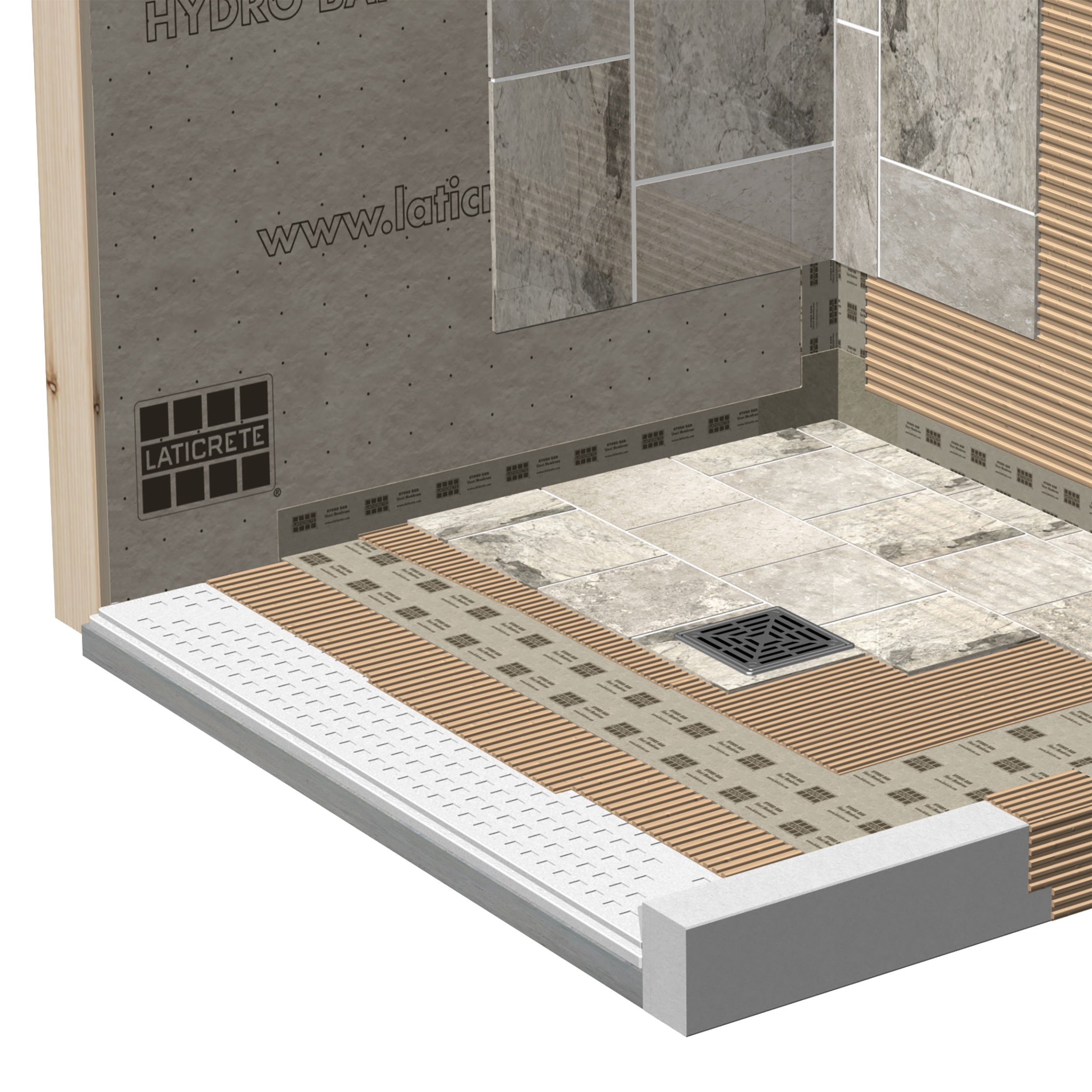

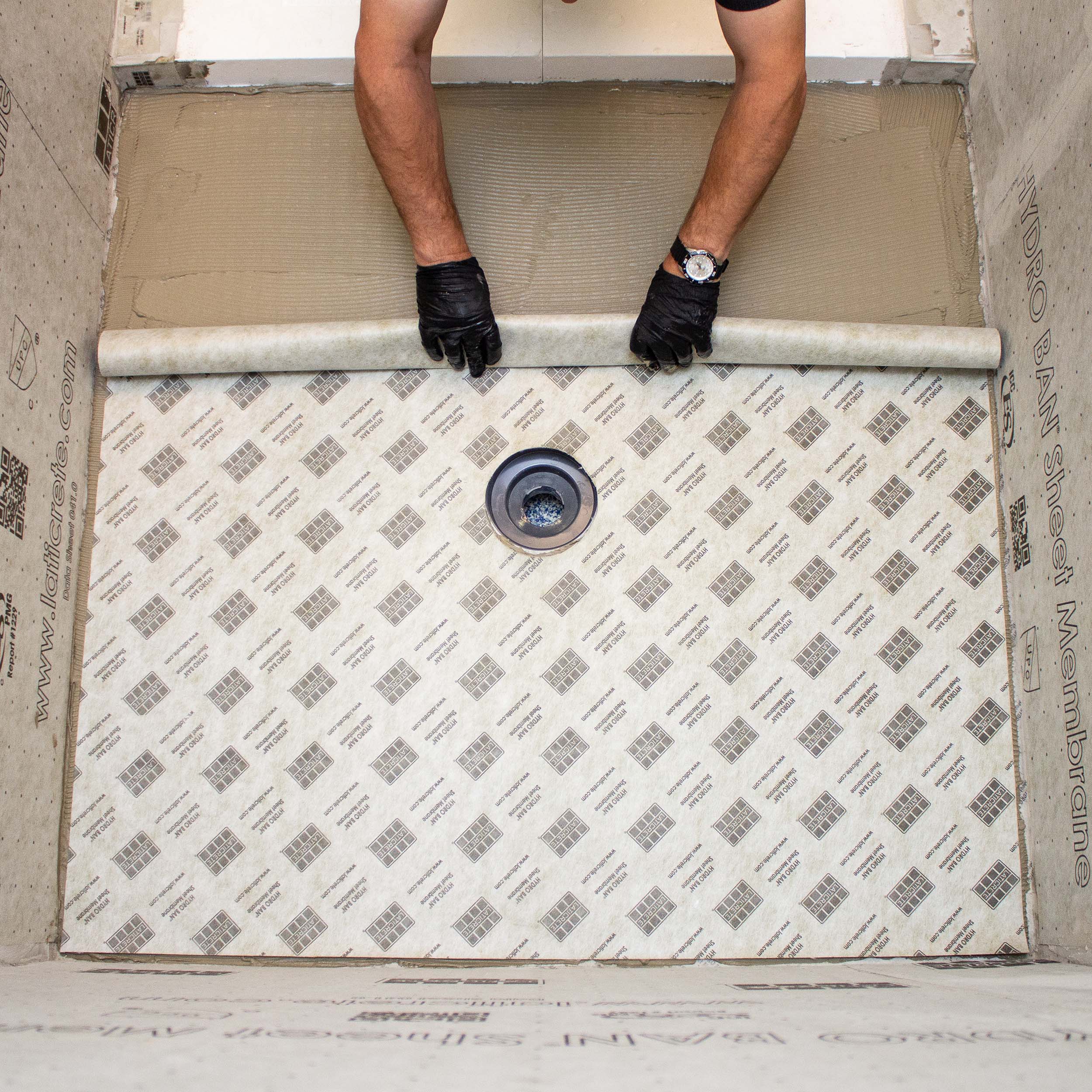

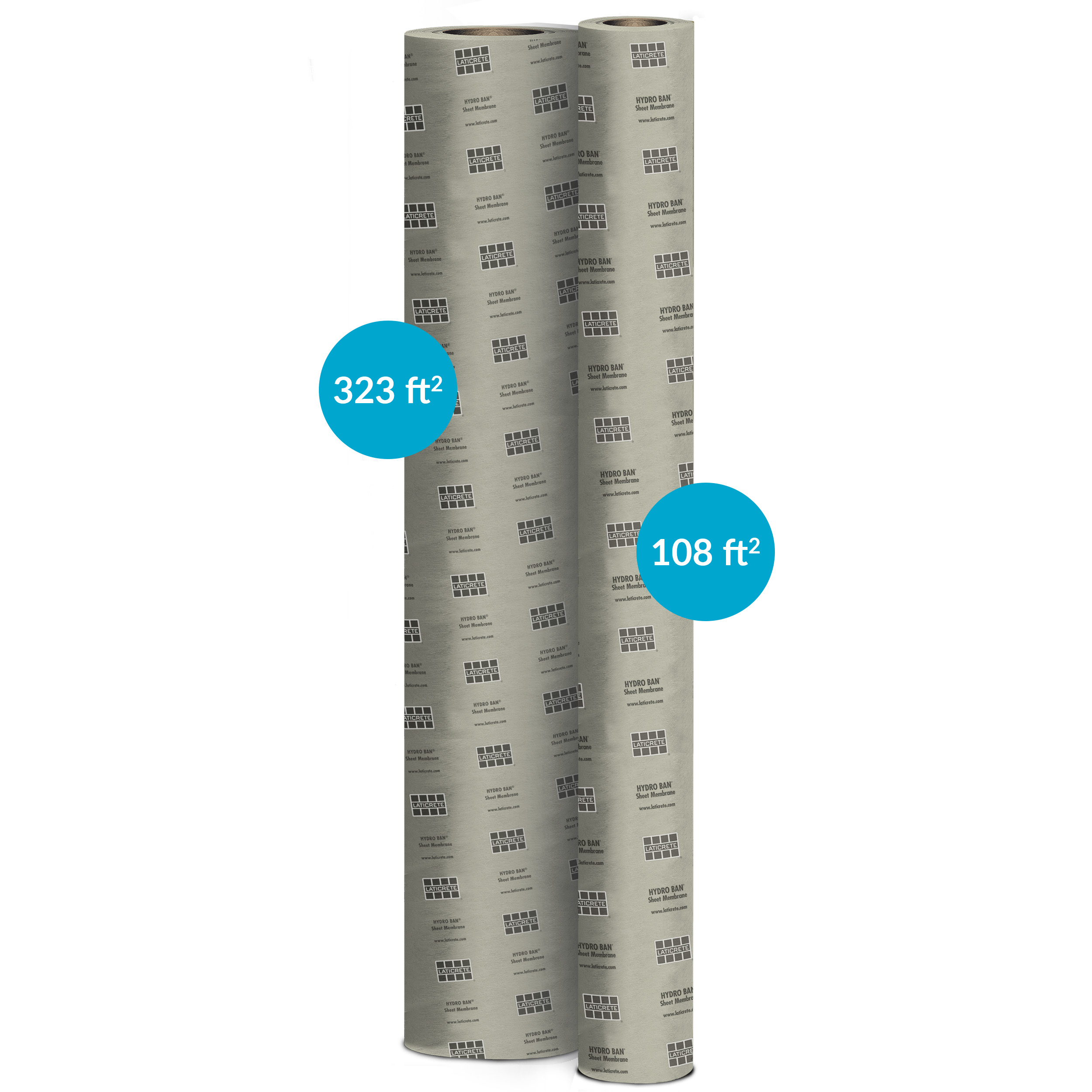

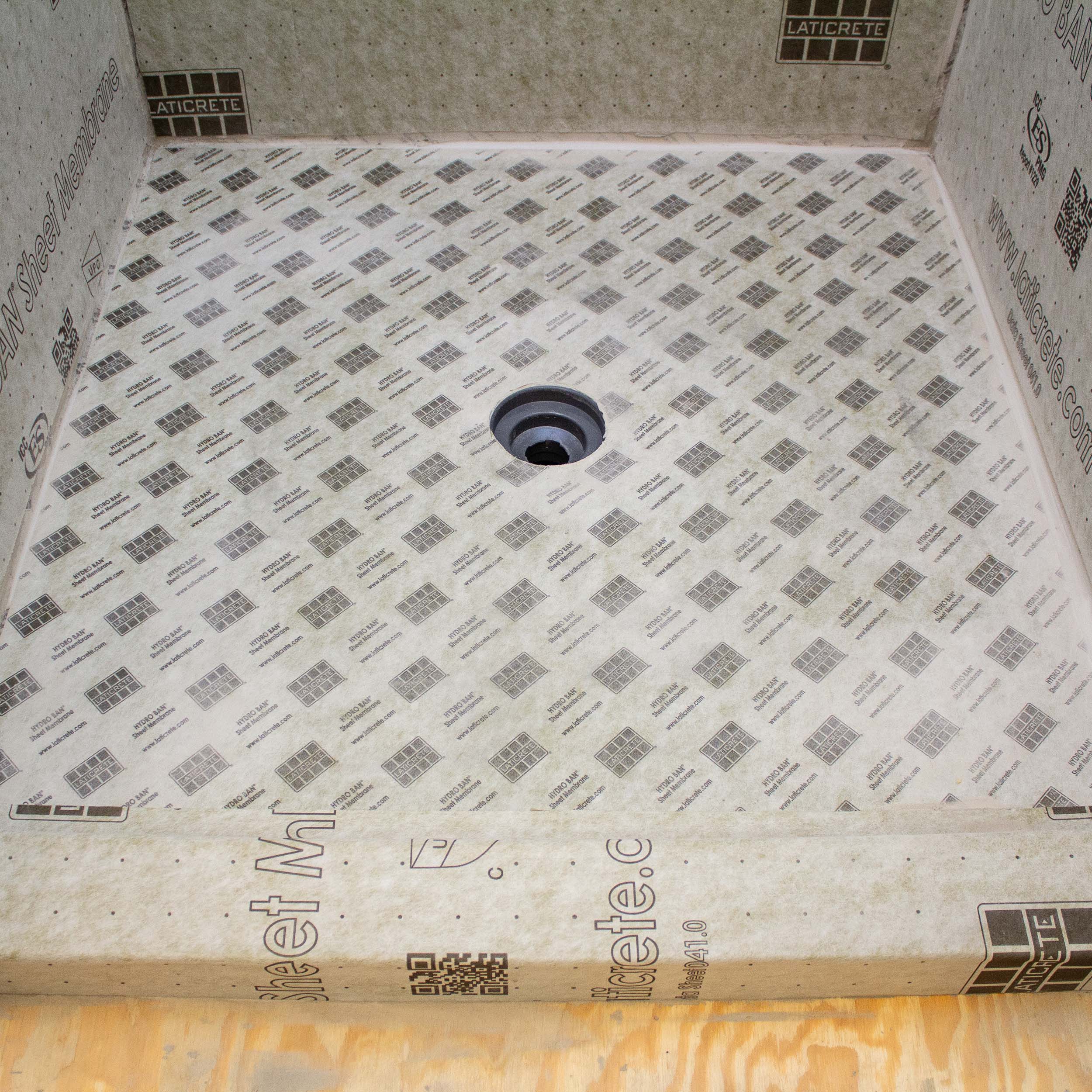

HYDRO BAN Sheet Membrane is a waterproof sheet membrane that is installed using a substrate appropriate LATICRETE® thin-set. Due to its polymeric construction, HYDRO BAN Sheet Membrane can also be used as a vapor barrier/waterproofing membrane for steam room and steam shower applications. Available in rolls, tapes, corners and collars, HYDRO BAN Sheet Membrane allows for a quick, easy waterproofing installation, which will retain its integrity for the life of the installation.

Features & Benefits

  • ANSI A118.10 - Exceeds all requirements
  • ASTM D4068
  • ASTM E96/E96M Procedure E-0.06 Perms - approved for steam showers / rooms as single membrane
  • IAPMO approved
  • Pliable – conforms easily to substrate
  • Complete line of accessories – single source supply
  • Allows for installation over green mortar beds
  • Installs with modified or unmodified thin-set†
  • Compatible with HYDRO BAN products++
  • † Refer to requirements for specific substrate to which the HYDRO BAN Sheet Membrane will be bonded
  • ++When using HYDRO BAN liquid applied waterproofing membrane in conjunction with HYDRO BAN Sheet Membrane be sure to overlap the HYDRO BAN liquid onto the HYDRO BAN Sheet Membrane by 2” (50mm). Apply HYDRO BAN liquid in two coats ensuring the first coat dries to a uniform olive green color before the second coat is applied.

Product Specifications


Product # 9455-0108-2 / 9455-0323-2
Patent #(s)
Available Colors
Part of System LATICRETE®
Country Availability Canada, United States
Substrates Brick Masonry, Cement Backer Board, Cement Mortar Bed, Cement Plaster, Cement Terrazzo, Ceramic Tile and Stone, Ceramic Tile and Stone, Concrete, Concrete Masonry, Exterior Glue Plywood, Gypsum Wallboard, Poured Gypsum Underlayment
Packaging Summary
See Packaging and Approximate Coverage Table
